EL.CO Micro

TopQuality



TYPE  Hydraulic
SPEED  Max 1m/sec
STOPS  Up to 32
OPERATION  Full Collective, Duplex
COMMUNICATION SG BUS

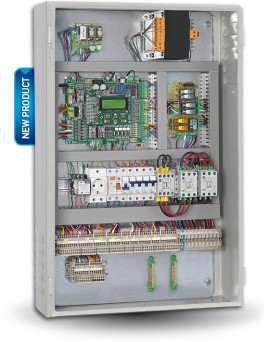

NEW high-tech lift controller of “EL.CO Micro” product series for hydraulic lifts (all types of valves-Blain, Bucher, GMV etc.)

EL.CO MICRO lift controller is our most advanced solution for multi-level structures and high range lift applications. Covering up to 32 stops and 1,6m/sec, EL.CO MICRO lift controller provides flexibility for single or groups of lifts (duplex, triplex, etc.)

The philosophy behind the design of EL.CO MICRO lift controller, is the high value-for-money that is accomplished by the optimal use of the available resources, mainly the powerful 32bit ARM microcontroller which provides top level performance and safety. Additionally, the “longlife design concept” of EL.CO MICRO lift controller is minimizing the industrial relays used and maximizes the reliability of your lifts.

With EL.CO MICRO lift controller, the installation process becomes even easier with the simple parameters setting through the user friendly menu that appears on the programming unit on the lift controller’s main board. Alternatively, the programming can be done through a pc or a modem.

The use of SG-BUS and CAN bus protocols in EL.CO MICRO lift control panel, allow the elimination of tens of cables that otherwise would have to be installed, thus cutting in parts and time, while providing a more reliable system overall.

The EL.CO MICRO lift control system has been designed for 1 or 2 speeds traction machines, V.V.V.F with synchronous (gearless) or asynchronous motors and hydraulic direct, delta/star start or soft starter.

ElCo_MICRO_logo

Why you should choose EL.CO Micro

  1. 1
    Powerful 32bit ARM microcontroller
  2. 2
    Longlife product design
  3. 3
    Compact size
  4. 4
    Intelligent diagnostics
  5. 5
    Easy installation



European Standards

  • Manufactured with branded and certified raw materials
  • EMC tested and verified
  • Certified with CE
  • Compatible with European standards and Directives for Lifts
    EN 81-1/2, EC 95/16, EN 81/70, EN 81/28, EN 12015, EN 12016, EN 50178, PUBEL
  • User friendly manual for installation, wiring and tuning
  • 2 years warranty

Cabinet Dimensions

Kouti_Pinaka
SxedioKoytiou_ELCO_MICRO
TYPE BOX DIMENSIONS
(Width x Height x Depth)
9KW-16KW 50 x 75 x 19 cm



Share this
Share on FacebookTweet about this on TwitterEmail to someoneGoogle+

Your ELEVATORS GENIUS partner !

TopPerformance

  • Hydraulic type for all types of hydraulic pumps
  • 32bit ARM 72MHz controller
  • Mini USB
  • Up to 32 stops
  • Serial Communication (Can bus, lin bus, uart)
  • Full Collective, Down Collective, Non selective-collective, Duplex-Triplex operation
  • Simultaneous operation of two or three automatic doors without magnetic sensors
  • Auxiliary 12 VDC output (UPS) 1A
  • Electronic valves control (short ciscuit protection)
  • Long life time for all utility relays
  • LCD panel for programming and adjusting parameters with password access
  • English language menu options
  • Intelligent battery charger
  • Environment temperature control and relay to control the phase sequence included on the controller
  • Temperature control of the motor or the oil motor
  • Real time clock
  • Lift diagnostics (error storage -saves the last 100 errors to facilitate maintenance and repair, drive statistics etc.)
  • Ground leakage is controlled in two levels, instant and continuous
  • Three-phase operator for sequence, voltage and symmetry
  • Full protection during the emergency evacuation with two relays
  • Electronic protected from short circuits all inputs and outputs from the main board


ELCO_MICRO_Hydraulic_CE Monofyllo_Micro_Aopsi
Click here to download
the product’s CE certificate
 Click here to download
the product’s brochure
PDF Download PDF Download
SgBus_Syndesmologia Prewiring SG-VOICE
Serial Communication
System SG BUS
Pre-Wiring
Shaft
SG-VOICE
SG_Radio Revision_GM650 Revision_PIT_STOP
SG-RADIO
Car Top Inspection
Box GM650
Car Top Inspection
Box GM412
