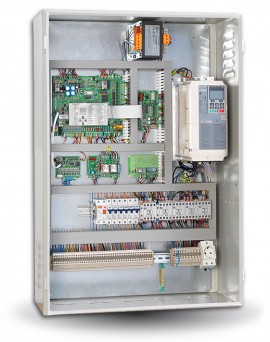

EL.CO Smart VVVF

TopQuality



TYPE  V.V.V.F.
SPEED  Max 1,6m/sec
STOPS  Up to 16
OPERATION  Full Collective
COMMUNICATION  Lin Bus (optional)
EVACUATION
 Automatic (optional)



The EL.CO Smart lift control system is an intelligent, flexible and cost effective controller. Thanks to its modular design it can be configured according to your requirements and permits you to have a fast and error-free installation. The integrated software with various diagnostic menus and self-test functions  gives you the benefit of quick and easy troubleshooting  and rank the EL.CO Smart controller as one of the most advanced solutions in the lift market.



European Standards

  • Manufactured with branded and certified raw materials
  • EMC tested and verified
  • Certified with CE
  • Compatible with European standards and Directives for Lifts
    EN 81-1/2, EC 95/16, EN 81/70, EN 81/28, EN 12015, EN 12016, EN 50178, PUBEL
  • User friendly manual for installation, wiring and tuning
  • 2 years warranty



Cabinet Dimensions

Kouti_Pinaka
SxedioKoytiou_SmartVVVF
TYPE BOX DIMENSIONS
(Width x Height x Depth)
3,7KW-15KW L1000A 64 x 94 x 28 cm
Share this
Share on FacebookTweet about this on TwitterEmail to someoneGoogle+

Your ELEVATORS GENIUS partner !

TopPerformance

  • Electric type with V.V.V.F. for synchronous (gearless) or asynchronous motors
  • Up to 16 stops
  • Speed: Up to 1,6 m/sec
  • Full Collective, Down Collective, Non selective-collective operation
  • Serial communication with car and landing operation panels (optional)
  • Simultaneous operation of two or three automatic doors without magnetic sensors
  • Long life time for all utility relays
  • Interface panel with LED’s that permits you to check the status of the lift at a glance
  • External programmer for adjusting parameters with password access
  • English language menu options
  • Intelligent battery charger
  • V.V.V.F. control from the lift controller (recognizes and records failures)
  • Environment temperature control and relay to control the phase sequence included on the controller
  • Motor temperature control
  • Real time clock
  • Lift diagnostics – saves the last 100 errors to facilitate maintenance and repair
  • Indicators operation voltage is 24VDC common
  • Ground leakage is controlled in two levels, instant and continuous.
  • Three-phase operator for sequence, voltage and symmetry
  • Εlectronic protected from short circuits all inputs and outputs from the main board
  • Feedback from main conductors and motor brakes
  • Automatic rescue operation with UPS (optional)


Microsoft Word - ELCO_SMART_Hydraulic_EN_2014.doc MONOFYLLO_SMART
Click here to download
the product’s CE certificate
Click here to download
the product’s brochure
PDF Download PDF Download
